Vintage 8-Liner Slot Game Board Lucky 8 Lines w/ Daughterboard Untested For Sale

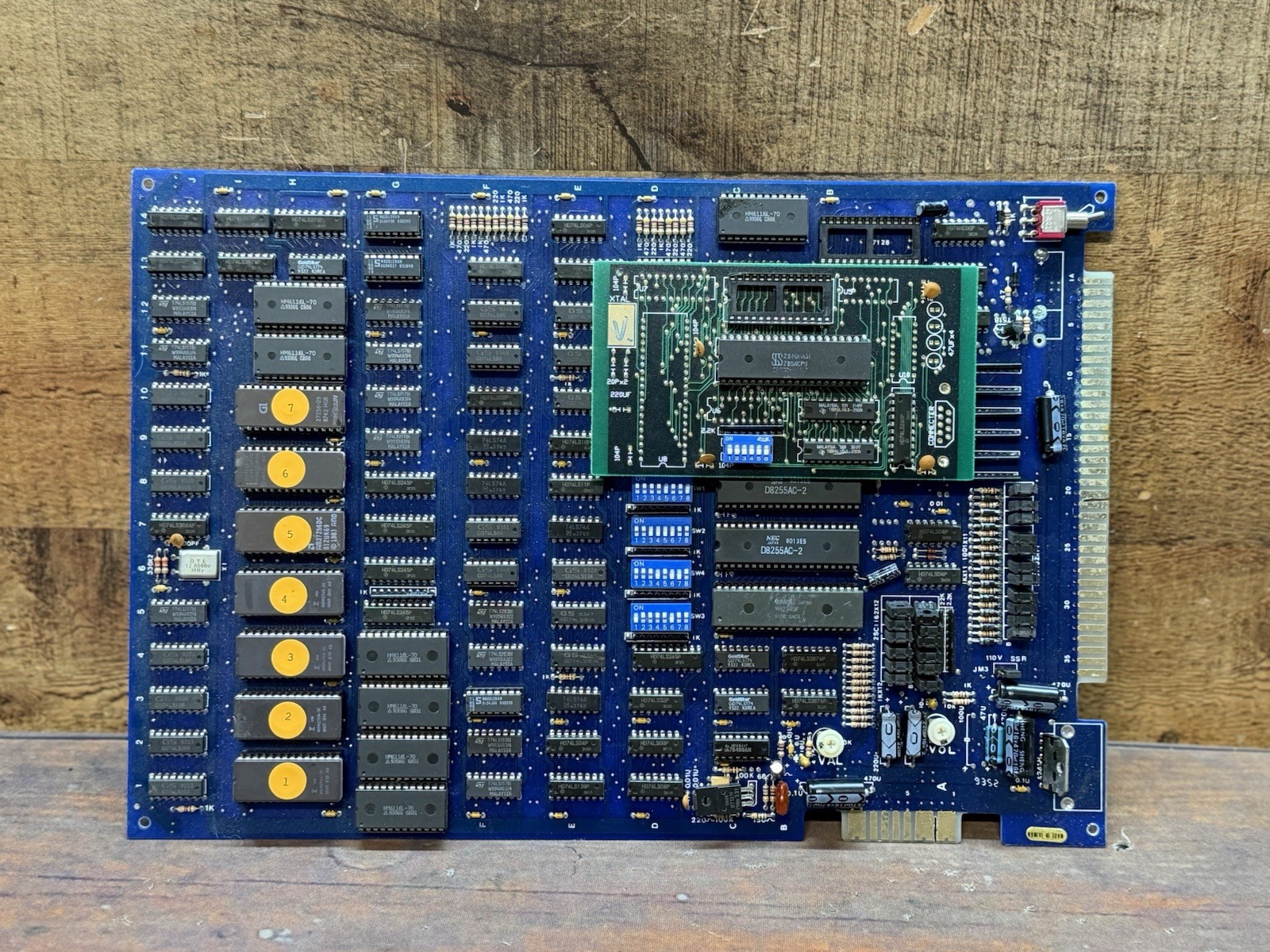

Vintage Lucky 8 Lines / New Lucky 8 Lines style 8-liner video slot / fruit machine arcade PCB.

Came from a jukebox/arcade environment. Blue double-sided board with gold card-edge connector. Taiwan made. Has the green piggyback daughterboard (MCU / extra module) still installed.

Visible parts include:

• Multiple D8255AC-2 PPI chips

• HM6116 SRAM

• Column of EPROMs with yellow numbered stickers (1–7)

• Lots of 74LS logic

• 110V control section (triac / SSR area)

• DIP switches and adjustment pots

Photos show the component side, solder side, and close-ups of chips and the “Made in Taiwan” mark.

Condition

Used. Sold as-is, untested. Board looks complete and reasonably clean with no obvious burned traces or missing major ICs from the photos. Gold fingers appear intact. I have not powered it or tested it in a machine.

This is typical 1980s–early 1990s 8-liner hardware (Wing / Yamate family and Taiwan bootlegs). Good for collectors, parts, or someone who already has a cabinet and harness.

Notes

• No cabinet, harness, power supply, or monitor included — board only.

• Buyer is responsible for correct wiring and voltage. These boards can be damaged by wrong power or static.

• Returns not accepted on untested electronic boards.

Ships from North Charleston, SC. US mainland only. Packed with anti-static protection.

Ask questions before offerding if you need more photos of a specific area.
