Leaf Blade Switch, Pin Ball, End-of-Stroke, Normally Open (NO) Gold Contacts:
$14.98

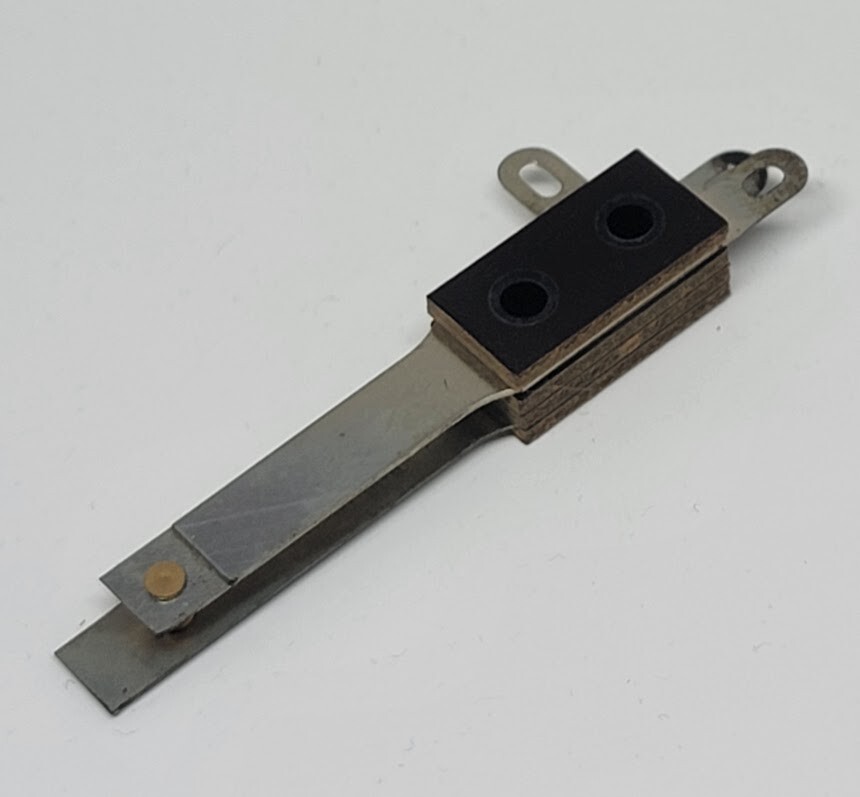

Williams - Leaf Blade Switch, Pin Ball, End-of-Stroke,Normally Open (NO) Gold Plated Contacts.

Status: Discontinued - End-of-Stroke Leaf Switch.

Overall Length: 2.42” Including Switch Stack and Terminals.Overall Width 0.725” Including Side Terminal.

Length of Long Blade from Switch Stake: 1.31”

Length of Short Blade from Switch Stack: 1.125”

Leaf Blade Width: 0.25”x 0.006” Thick Stainless Steel

Switch Block 0.75” Long x 0.375” Wide X 0.318 Thick

Standard Mount with 2 Screws (#5) Through-holes: 0.125”Diameter Spaced 0.375” Apart.

Contacts: Precision Gold Plated Contacts. Gold-platedcontacts can prevent tarnishing and degradation, which can affect the responseof the switch. Gold contacts are used for low voltage while tungsten contactsare generally used for higher voltage and current applications.

Applications: Some Data East, Sega, and others. Manyapplications use two Leaf Switches per slingshot bumper.

Note: There are many different size leaf switches. Checkdimensions and pictures thoroughly to confirm compatibility for yourapplication. Some customers reportedly disassemble to use the component partsto rebuild other leaf switches or relays.

Vintage - New Old Stock – Made in USA

Note: Discounts provided for purchases of 2, 3, or 4with "Make Offer" option limited to bulk purchases.
