Vintage 1981 Boeing 757 RB211-535C Aircraft Engine Technical Diagrams 10 Pages
✅ Condition
Used – Vintage Original Technical Documents
Vintage aircraft engineering and technical reference pages dated May 1981.
- Pages show age-related yellowing and discoloration.
- Some pages have handwritten engineering notes and markings.
- Edge wear, minor tears, creases, and handling marks are present.
- Several sheets have original binder punch holes.
- Some edges are uneven or show minor paper deterioration.
- Diagrams and technical information remain generally legible.
Sold as-is in the condition shown in photographs.
📝 Description

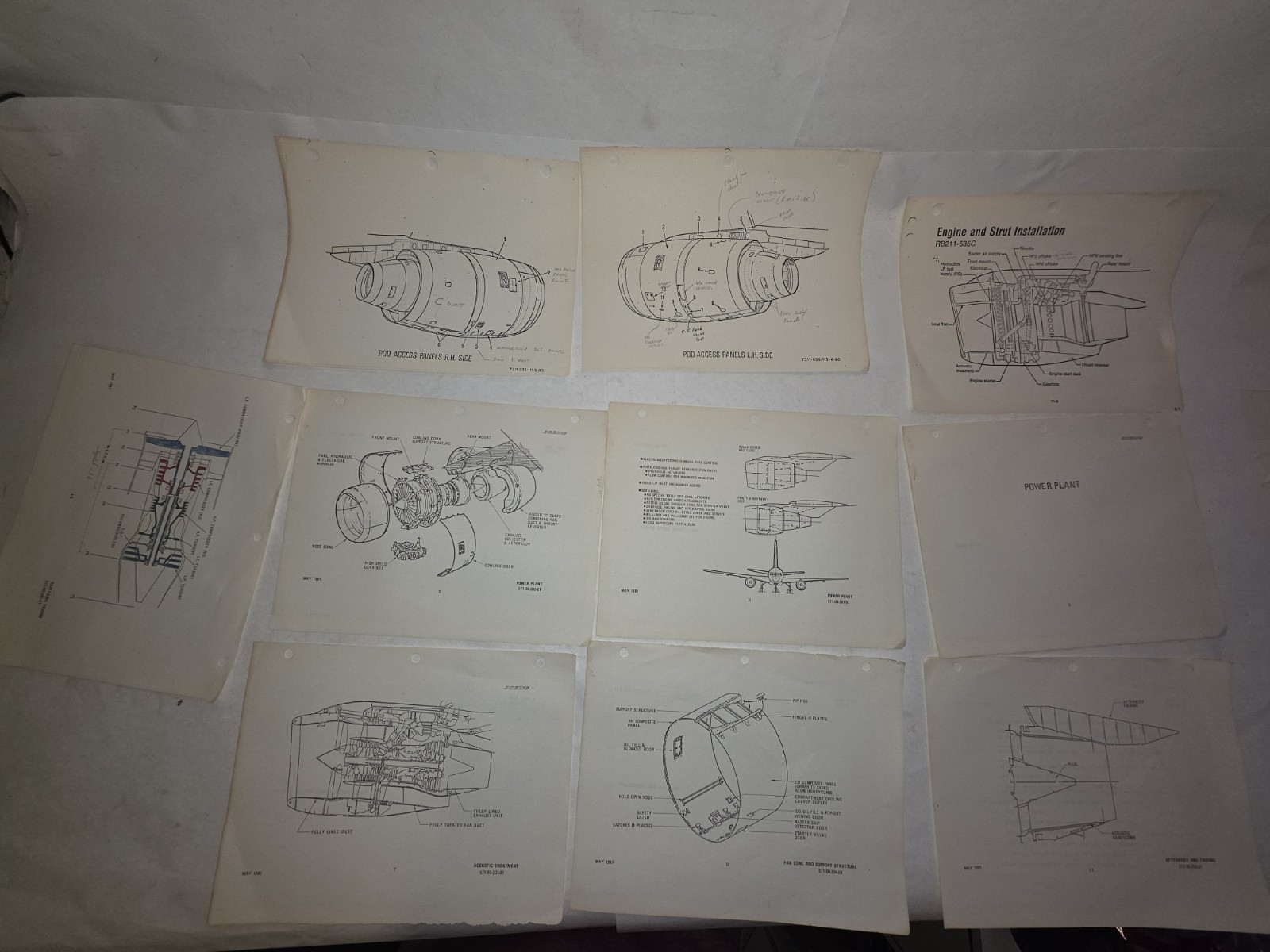

Offered for sale is a vintage collection of 10 aircraft engineering and technical illustration pages dated May 1981, featuring detailed diagrams of the Rolls-Royce RB211-535C turbofan engine and associated aircraft power plant installations.
These technical documents include illustrations of engine nacelles, internal turbine assemblies, fan cowls, thrust reverser configurations, acoustic treatments, and engine mounting arrangements.
The diagrams depict aircraft engine installation concepts associated with the Boeing 757-era Rolls-Royce RB211 power plant.
Several sheets contain handwritten annotations, adding an interesting historical engineering reference element.
An excellent addition to collections of vintage aviation documentation, aircraft engineering memorabilia, jet engine reference materials, and aerospace history.
📋 Specifications
- Document Type: Aircraft Technical Illustrations / Engineering Reference Pages
- Engine Manufacturer: Rolls-Royce
- Engine Model: RB211-535C
- Aircraft Application: Boeing 757-era Power Plant
- Document Date: May 1981
- Number of Sheets: 10, as displayed
- Format: Loose Technical Reference Pages
- Printing: Primarily Black-and-White Technical Line Drawings
- Additional Details: One diagram includes colored technical components
- Paper: Vintage Off-White Engineering / Manual Paper
- Binding: Loose Pages With Binder Holes
- Language: English
📑 Technical Topics Included
- ✅ RB211-535C engine specifications
- ✅ Engine and strut installation
- ✅ Engine power plant arrangements
- ✅ Fan cowl and support structure
- ✅ Pod access panels, right-hand side
- ✅ Pod access panels, left-hand side
- ✅ Acoustic treatment
- ✅ Thrust reverser and nacelle components
- ✅ Afterbody and fairing configuration
- ✅ Internal engine and nacelle diagrams
📦 What's Included
- ✅ 10 vintage aircraft engineering reference sheets
- ✅ Technical diagrams and specifications shown in photographs
- ✅ Handwritten markings on certain sheets
What's pictured is what you will receive.
⚠️ Notes
- Originality and exact issuing organization have not been independently authenticated.
- Some illustrations include handwritten notes.
- These are loose pages, not a complete aircraft maintenance manual.
- Documents show age-related wear and storage discoloration.
- Sheet count is based on the visible collection. Please refer to photos.
- Intended for historical reference and collecting, not for actual aircraft servicing or maintenance.
