Original USAF F-4 Engineering Drawing SetMain Landing Gear High Pressure Piston Test StandComplete 8-Sheet Technical Drawing Set • X8633778
Offered here is an exceptional complete 8-sheet set of original vintage technical engineering drawings documenting an F-4 Main Landing Gear High Pressure Piston Test Stand.

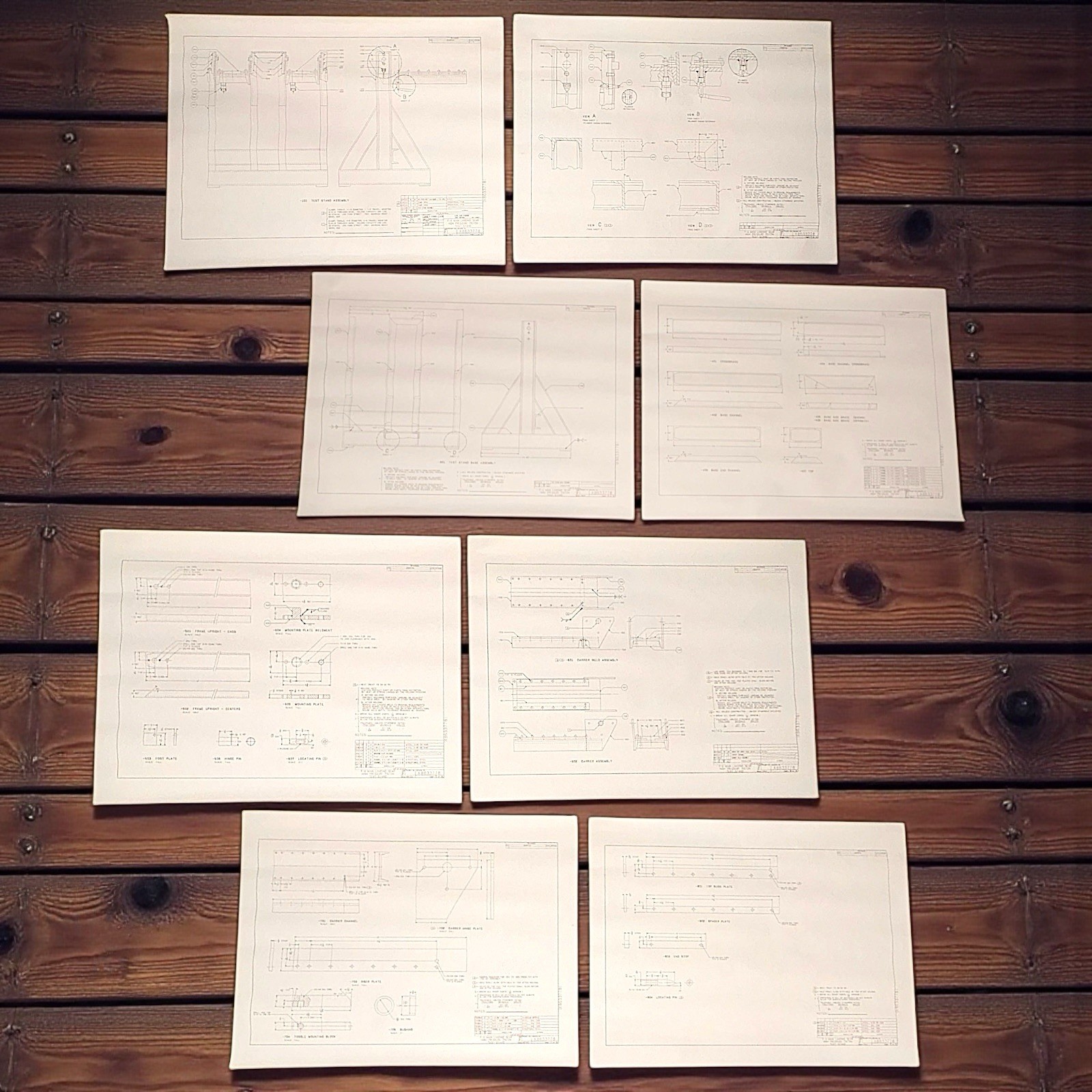

All eight related sheets are present, forming a sequential Sheet 1 of 8 through Sheet 8 of 8 technical drawing package identified under Drawing No. X8633778.
Each large-format sheet measures approximately 22 x 17 inches.
Far more than a decorative aviation print, this fascinating technical set documents the engineering, fabrication, assembly, materials, dimensions, tolerances and individual components required for a specialized test stand associated with the F-4 main landing gear system.
Complete 8-Sheet Engineering Set
The collection includes both overall assembly views and detailed component drawings. Together, the eight sheets provide a remarkably detailed look at the construction and operation of the test stand assembly.
Subjects and components documented throughout the set include:
- Test Stand Assembly
- Test Stand Base Assembly
- Structural Base Channels & Crossbraces
- Frame Uprights
- Mounting Plates & Weldments
- Foot Plates
- Hinge & Locating Pins
- Carrier Weld Assembly
- Carrier Assembly
- Carrier Channel
- Carrier Hinge Plate
- Riser Plate
- Toggle Mounting Block
- Bushing
- Top Guide Plate
- Spacer Plate
- End Stop
- Additional Fabrication & Assembly Components
Detailed Technical & Manufacturing Information
These are highly detailed working-style engineering documents containing extensive technical information beyond simple illustrations.
Throughout the set are detailed dimensions, component numbers, assembly references, fabrication instructions, welding requirements, manufacturing tolerances, material lists and material specifications.
Visible material specifications include references to structural steel, SAE 1020 steel, 4130 or 4340 steel, and aluminum bronze, among other technical details.
The drawings also document individual parts at multiple scales, providing an intriguing view into the engineering and fabrication behind specialized military aviation support and testing equipment.
Drawing IdentificationDrawing TitleF-4 Main Landing Gear High Pressure Piston Test StandDrawing NumberX8633778Number of Sheets8SequenceSheets 1 of 8 through 8 of 8Approximate Size22 x 17 inches eachFormatLarge-Format Technical Engineering DrawingsDistinctive Watermarked Paper
When held to light, the drafting paper reveals a large eagle-style watermark with additional faint lettering and/or numerals. The watermark is embedded within the paper itself and is clearly documented in the listing photographs.
The exact origin or manufacturer of the watermark has not been independently identified, so buyers are encouraged to examine the detailed watermark photograph included with this listing.
